Single Conductor Pulleys for stringing ACSR 25 to ACSR 500 are made of aluminium/ MC nylon mounted on ball bearings.
Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.

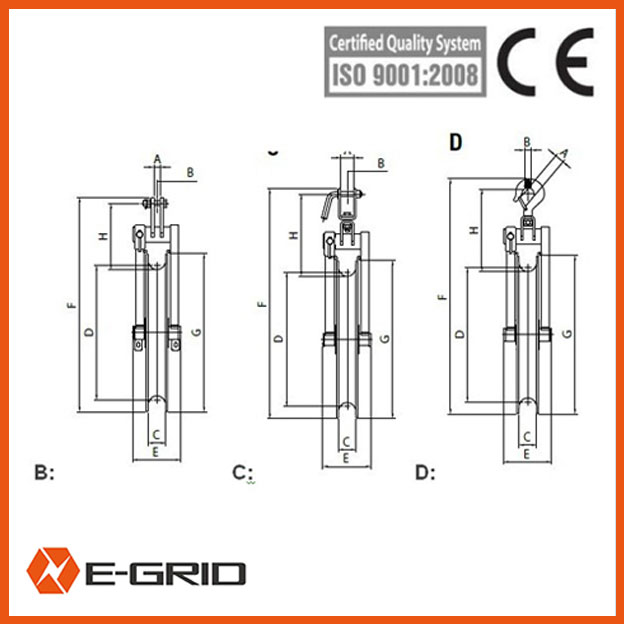

Single Conductor Pulleys for stringing ACSR 25 to ACSR 500 are made of aluminium/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring or by wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanized steel. The pulleys can be supplied with three types of connections: fixed(B), swivel-type(C) or with a hook supplied with safety lock(D). Grounding device or complete conductive sheaves can be supplied on demand.
| Order number | Model | Suitable conductor | Breaking load (kg) | Weight (kg) | Features |
|---|---|---|---|---|---|
| 10171 | SHD-120×30 | ACSR25～70 | 15 | 1.5 | Aluminous sheave |
| 10172 | SHD-160×40 | ACSR95～120 | 30 | 2.5 | |
| 10173 | SHD-200×40 | ACSR150～240 | 45 | 4 | |
| 10174 | SHD-200×60 | ACSR150～240 | 45 | 4.6 | |
| 10175 | SHD-250×40 | ACSR150～240 | 60 | 4.6 | |
| 10176 | SHD-250×60 | ACSR300～400 | 60 | 6 | |
| 10177 | SHD-270×60 | ACSR300～400 | 60 | 7 | |
| 10178 | SHD-320×60 | ACSR300～400 | 60 | 9.5 | |
| 10179 | SHD-400×80 | ACSR400～500 | 60 | 15 | |
| 10191 | SHDN-120×30 | ACSR25～70 | 15 | 1.5 | Nylon sheave |
| 10192 | SHDN-160×40 | ACSR95～120 | 30 | 2.5 | |
| 10193 | SHDN-200×40 | ACSR150～240 | 45 | 3.6 | |
| 10194 | SHDN-200×60 | ACSR150～240 | 45 | 4 | |
| 10195 | SHDN-250×40 | ACSR150～240 | 60 | 4 | |
| 10196 | SHDN-250×60 | ACSR300～400 | 60 | 4.5 | |
| 10197 | SHDN-270×60 | ACSR300～400 | 60 | 5.6 | |
| 10198 | SHDN-320×60 | ACSR300～400 | 60 | 6.7 | |
| 10199 | SHDN-400×80 | ACSR400～500 | 60 | 13 |
Used for extending aluminum stranded wire, steel core aluminum stranded wire and insulated conductor on poles and towers. Protect cable from damage.
The pulley wheels are made of aluminum alloy / MC nylon mounted on ball bearings
The frame is made of high quality steel, Surface spray anti – rust paint to avoid rusting
With seamless welding technology , technology skills, welded firmly.
The block has built-in bearing, which can rotate flexibly, effectively reduce friction and save labor.
Numbers in the model name mean outside diameter of sheave ×width of sheave (mm).
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
We can supply all kinds of stringing equipment according to customers’ requirements.
1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.
1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
