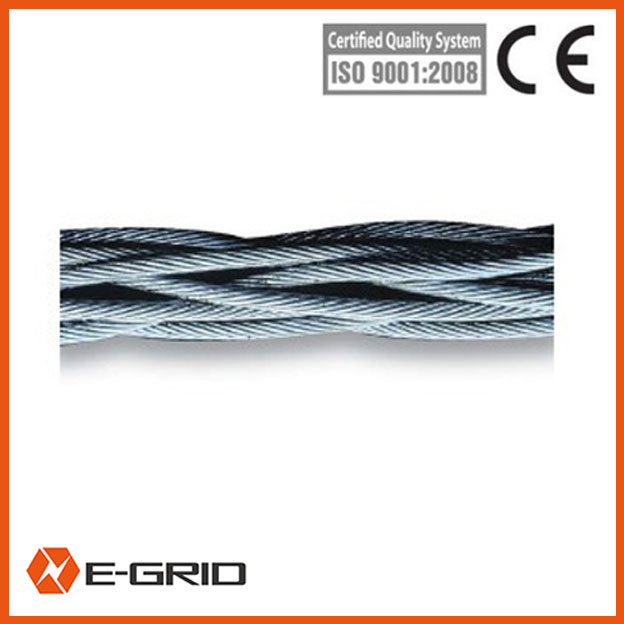

High Flexibility Anti-Twisting Steel Braided Rope, made up of braiding strands.It’s used to Increased efficiency during stringing operations.
Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.
| Order number | Structure | Diameter(mm) | Single strand diameter (mm) | Breaking force (kN) | Production length (m) |
|---|---|---|---|---|---|
| 18101 | Square eight strands | 7 | ¦µ2.0 | 34.38 | |
| 18102 | 9 | ¦µ2.5 | 53.9 | ||
| 18103 | 11 | ¦µ3.0 | 76.94 | ||
| 18104 | 13 | ¦µ3.5 | 105.04 | ||
| 18105 | 15 | ¦µ4 | 116.6 | ||
| 18109 | Square twelve strands | 11 | ¦µ2.5 | 80.8 | |
| 18110 | 13 | ¦µ3.0 | 115.4 | ||
| 18111 | 15 | ¦µ3.5 | 157.55 | ||
| 18112 | 18 | ¦µ4.0 | 206.27 | 800 | |
| 18113 | 20 | ¦µ4.5 | 260.3 | ||
| 18118 | Hexagon twelve strands | 11 | ¦µ2.5 | 80.8 | 1000 |
| 18119 | 13 | ¦µ3.0 | 115.4 | ||
| 18120 | 15 | ¦µ3.5 | 157.5 | ||
| 18121 | 18 | ¦µ4.0 | 205.71 | 800 | |
| 18122 | 20 | ¦µ4.5 | 260.34 | ||
| 18123 | 24 | ¦µ5.0 | 320.82 | ||
| 18140 | Hexagon eighth strands | 21 | ¦µ3.0 | 173.1 | |
| 18141 | 24 | ¦µ3.5 | 236.33 | ||
| 18151 | 27 | ¦µ4.0 | 309.4 | 600 | |
| 18152 | 30 | ¦µ4.5 | 389.28 | ||
| 18153 | 33 | ¦µ5.0 | 481.22 | ||
| 18154 | 36 | ¦µ5.5 | 581.75 |
applied to mechanical pulling and tensioning release conductors.
high flexibility
complete stability to rotation.
Homogeneous distribution of pressure between the elementary wires
Increased efficiency during stringing operations.
Strands with individual galvanized elementary wires
braided1960 Mpa high-strength galvanized steel wire，the specification and length of steel can custom according to your request
According to production variations, the linear mass may change.
The specification and length of steel can be according to customs’ requirement.
·Order number: 18145
·Use: It is used to make eye ends for steel ropes (Φ12-22 mm).
·Dimension (mm): 840×441×658
·Weight (kg):18
·Order number: 18161
·Main technical parameter:
Power (kW): 2
Voltage (V): 220
Oil box volume (L): 60
Dimension (mm): 750×500×650
Weight (kg): 65
·Use: It can automatically control oil temperature when it oils steel ropes.

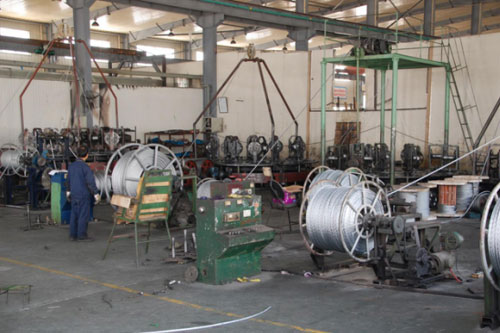

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
