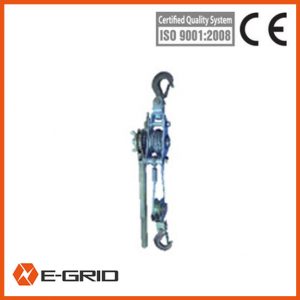

Frictional ratchet wire tightener are made of steel and equipped with mechanical brake; designed to facilitate and accelerate chain positioning operat.
Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.
Frictional ratchet wire tightener are made of steel and equipped with mechanical brake; they are designed to facilitate and accelerate chain positioning operations. Chains with different lengths are available on demand.
| Order number | Model | Rated load (kN) | Number of teeth of ratchet sheave | Weight (kg) | Feature |
|---|---|---|---|---|---|
| 14101 | SJIA-1 | 10 | 25 | 3.2 | Volute hook |
| 14102 | SJIA-1A | 10 | 25 | 3.2 | kook |
To cooperate with conductor grip in tightening conductor.
Adopt friction mechanism, turning agilely and reliably
Frictional ratchet wire tightener are made of steel and equipped with mechanical brake
they are designed to facilitate and accelerate chain positioning operations.
High strength steel wire, not easy to be broken
The hook’s head is made of high strength hot forged steel, and is oval with safety device
The handle can rotate 360︒,easy to use
Chains with different lengths are available on demand.
| Order number | Model | Rated load (kN) | Specification | Hanging Type | Weight (kg) |
|---|---|---|---|---|---|
| 14261 | SJJ-1 | 8 | Number of teeth of ratchet is 18 | Pin | 1.7 |
| 14262 | Hook | 1.8 | |||
| 14263 | SJJ-1A | 8 | Number of teeth of ratchet is 18 | Pin | 1.9 |
| 14264 | Hook | 2 | |||
| 14271 | SJJ-2 | 12 | Number of teeth of ratchet is 20 | Pin | 2 |
| 14272 | Hook | 2.1 | |||
| 14273 | SJJ-2A | 12 | Number of teeth of ratchet is 20 | Pin | 2.2 |
| 14274 | Hook | 2.3 |

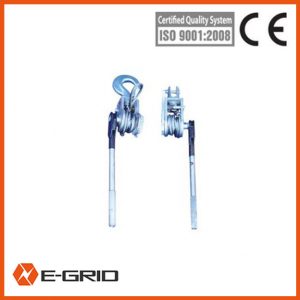

It is used to tighten steel stranded wire and aluminous stranded wire in line construction.
The free stretch distance is 1m
High strength steel wire, not easy to be broken
The hook’s head is made of high strength hot forged steel, and is oval with safety device.
| Order number | Max pull (kN) | Withdrawing load (kN) | Applicable diameter of rope (mm) | Weight (kg) | Feature |
|---|---|---|---|---|---|
| 14251 | 6 | 30 | ¡Ü¦µ11 | 38 | Attached with hand crank winch |
| 14252 | - | 30 | ¡Ü¦µ11 | 6.5 | - |
| 14253 | - | 20 | ¡Ü¦µ11 | 6.5 | - |

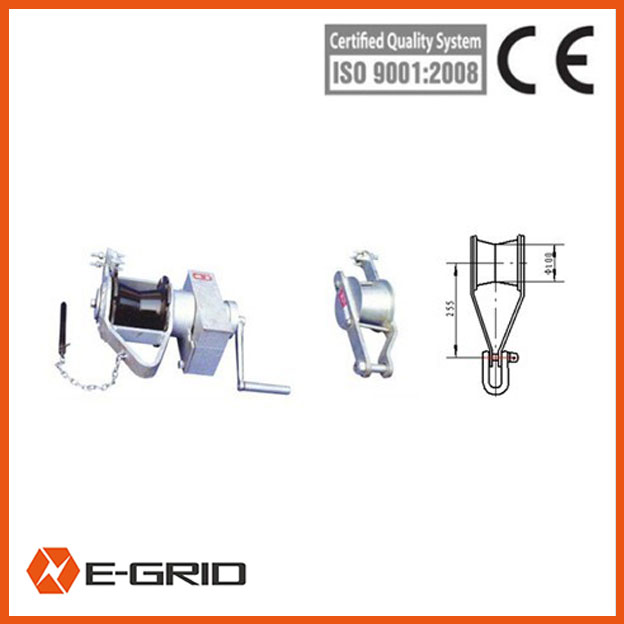

to relax the cable when stringing, the tail rope can be fixed.
| Order number | Model | Rated load (kN) | Specification | Hanging Type | Weight (kg) |
|---|---|---|---|---|---|
| 14261 | SJJ-1 | 8 | Number of teeth of ratchet is 18 | Pin | 1.7 |
| 14262 | Hook | 1.8 | |||
| 14263 | SJJ-1A | 8 | Number of teeth of ratchet is 18 | Pin | 1.9 |
| 14264 | Hook | 2 | |||
| 14271 | SJJ-2 | 12 | Number of teeth of ratchet is 20 | Pin | 2 |
| 14272 | Hook | 2.1 | |||
| 14273 | SJJ-2A | 12 | Number of teeth of ratchet is 20 | Pin | 2.2 |
| 14274 | Hook | 2.3 |

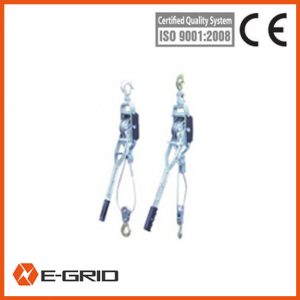

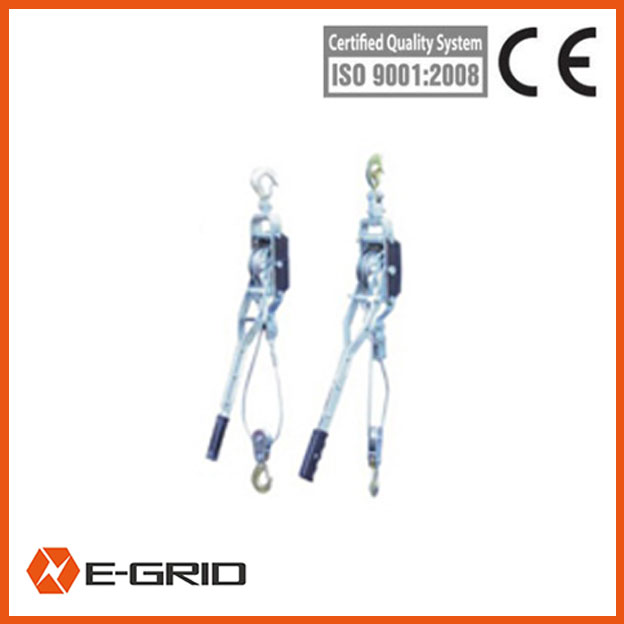

To cooperate with conductor grip in tightening conductor .
Hook adopts seamless welding technology, Wear-proof
Is made of high quality steel, Surface spray anti – rust paint to avoid rusting
Anti-twist steel wire ,anti-slip handle
“A” in model names mean those products are with matched 1.2 m steel rope.
