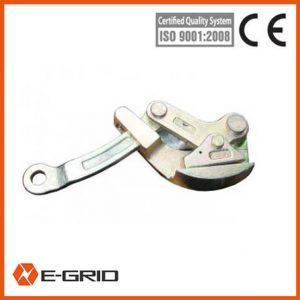

Self Gripping Clamps For Earth Wire can be used to anchor and to string earth wire.
Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.
Self Gripping Clamps For Earth Wire can be used to anchor and to string earth wire. The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load. The galvanization treatment on the surface protects from oxidation. We can provide the jaws with special dimension according to customers’ requirement.
| Order number | Model | Rated load (kN) | Applicable | Max | Weight |
|---|---|---|---|---|---|
| steel strandedwire | gap (mm) | (kg) | |||
| 13101 | SKDZ-0.5 | 5 | GJ10~25 | 10 | 2 |
| 13102 | SKDZ-1 | 10 | GJ25~50 | 12 | 2 |
| 13103 | SKDZ-2 | 20 | GJ50~70 | 14 | 2.9 |
| 13104 | SKDZ-3 | 30 | GJ70~120 | 16 | 3.5 |
| 13105 | SKDZ-5 | 50 | GJ150~185 | 20 | 8.3 |
used to anchor and to string earth wire.
The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts， will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space
We can provide the jaws with special dimension according to customers’ requirement.
| Order number | Model | Rated load (kN) | Applicable range (mm) | Weight(kg) |
|---|---|---|---|---|
| 13111 | SKF-1 | 10 | ¦µ4¡«20 | 1.1 |
| 13112 | SKF-2 | 20 | ¦µ6¡«24 | 2 |

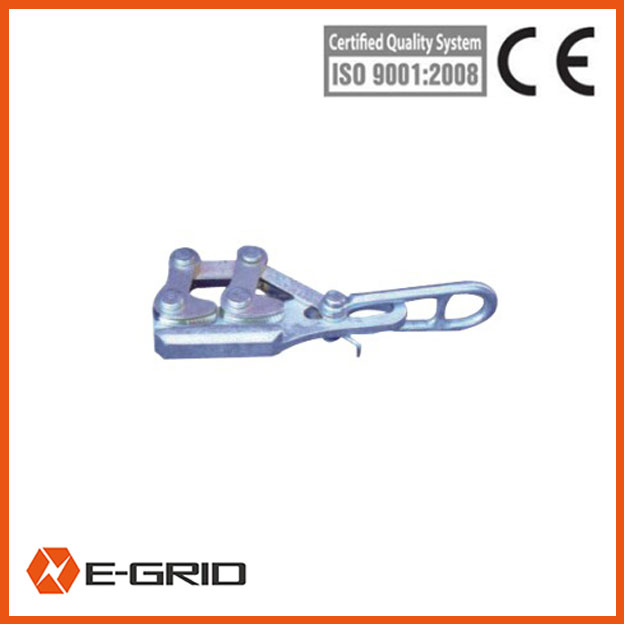

To grip the copper core wires, steel stranded wires, etc.
The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts， will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space
We can provide the jaws with special dimension according to customers’ requirement.
| Order number | Model | Rated load (kN) | Applicablesteel trandedwire | Maxgap (mm) | Weight(kg) |
|---|---|---|---|---|---|
| 13113 | SKD25 | 10 | GJ25 | 95 | 25 |
| 13114 | SKD35 | 10 | GJ35 | 95 | 25 |
| 13115 | SKD50 | 15 | GJ50 | 10 | 35 |
| 13116 | SKD70 | 20 | GJ70 | 125 | 50 |
| 13117 | SKD100 | 30 | GJ100 | 14 | 60 |

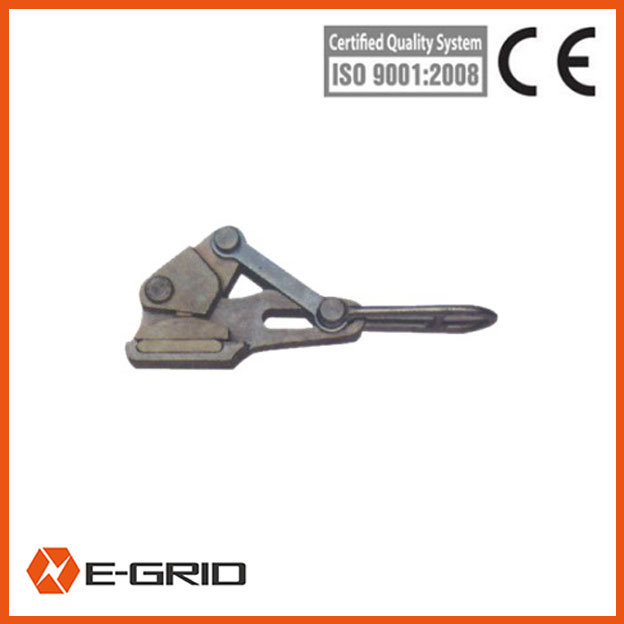

Applied in earth wire (steel or aluminous stranded ) construction .
Adopt heat-treated and strengthened alloy steel.
V-shape clipper gap is for avoiding skidding.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts， will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space
We can provide the jaws with special dimension according to customers’ requirement.
| Order number | Model | Rated load (kN) | Applicablesteel trandedwire | Maxgap (mm) | Weight(kg) |
|---|---|---|---|---|---|
| 13141 | SKDS-1 | 10 | GJ25¡«50 | 11 | 2.6 |
| 13142 | SKDS-2 | 20 | GJ50¡«70 | 13 | 3.1 |
| 13143 | SKDS-3 | 30 | GJ70¡«120 | 15 | 4.1 |

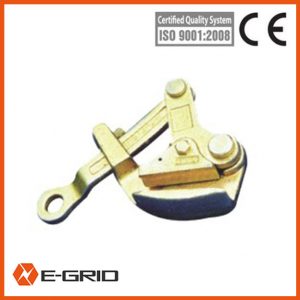

For adjustment of stringing poles and earth wire tensioning.
The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts， will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space
We can provide the jaws with special dimension according to customers’ requirement.

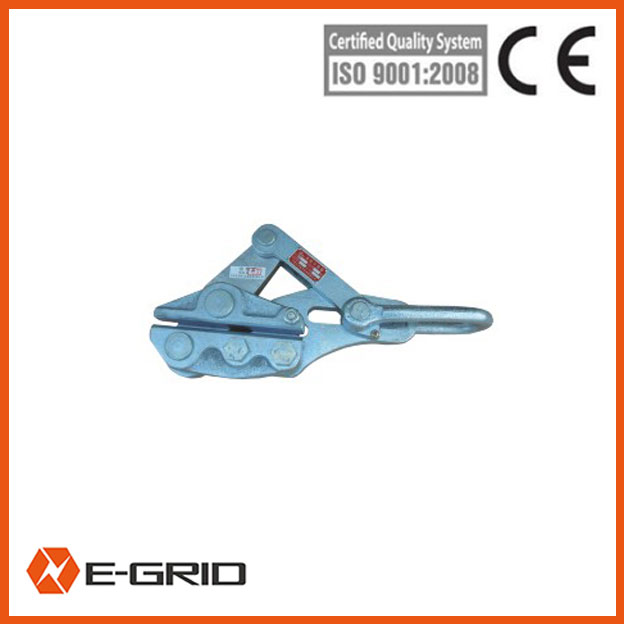

Suitable for steel wire, aluminum wire, ACSR and insulated conductor.
The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts， will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space
We can provide the jaws with special dimension according to customers’ requirement.
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
