Conductor Wire Self-gripping Clamps China

Self-gripping Clamps For Conductor can be used to anchor and to string conductor.We can provide jaws with special dimension according to requirement.

​About E-Grid

​Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.

Description

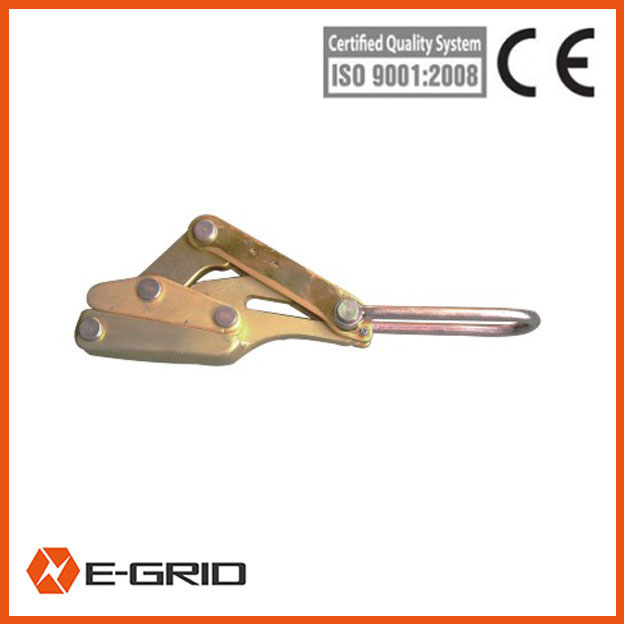

Self-gripping Clamps For Conductor

Self-gripping Clamps For Conductor can be used to anchor and to string conductor. The body is made of high strength aluminum alloy, in order to minimize the ratio between weight and working load. The galvanization treatment on the surface protects from oxidation. We can provide the jaws with special dimension according to customers’ requirement.

Conductor wire Self-gripping Clamps China
Conductor wire Self-gripping Clamps China

Order numberModelRated load (kN)Applicable conductorMax gap (mm)Weight (kg)
13221SKL-77ACSR25¡«70141
13222SKL-1515ACSR95¡«120181.4
13223SKL-2525ACSR150¡«240243
13224SKL-4040ACSR300¡«400324
13225SKL-50A50ACSR500346.6
13226SKL-50B50ACSR630366.6
13227SKL-6060ACSR720389.2

Application

Applied to adjusting sag in erecting wire and sagging.

Feature

The body is made of high strength aluminum alloy, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts, will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space
We can provide the jaws with special dimension according to customers’ requirement.

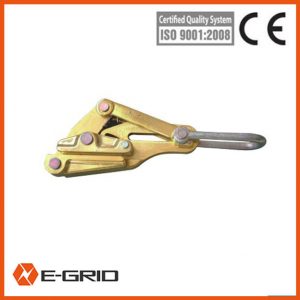

Grip for insulated conductors

Conductor wire Self-gripping Clamps China
Conductor wire Self-gripping Clamps China

Order numberModelRated load (kN)Diameter of applicable wireMax gap (mm)Weight (kg)Features
13182SKJL-0.55¦µ6¡«¦µ10121Aluminous alloy
13192SKJL-110¦µ10¡«¦µ14151.4Aluminous alloy
13202SKJL-1.515¦µ14¡«¦µ20223Aluminous
13212SKJL-220¦µ20¡«¦µ25274Aluminous
13213SKJLA-220¦µ25¡«¦µ29314Aluminous

Application

used to anchor and to string conductor.

Feature

Adopted S-shape serpentine and wavy jaw, positive grip and excellent protective to insulation.
The body is made of high strength aluminum alloy, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts, will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space
We can provide the jaws with special dimension according to customers’ requirement.

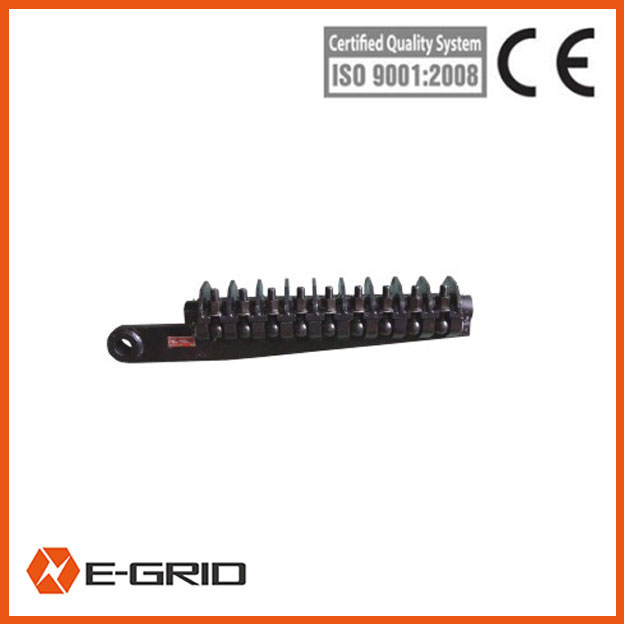

Model SK3035DP1 radial locking grip(bolt type)
Conductor wire Self-gripping Clamps China
Conductor wire Self-gripping Clamps China

·Order number: 13230
·Diameter of applicable conductor: Φ30~Φ35 mm (specify the diameter of conductor in the contract).
·Rated load: 120kN
·Torque for tightened bolt: 150N.m
·Weight: 48.5 kg.

Application

can be used in large section conductor and long span high tensioning construction occasion , protect conductor effectively.

Feature

The body is made of high strength aluminum alloy, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable.
High quality nuts, will not become loose even if used for a long time.

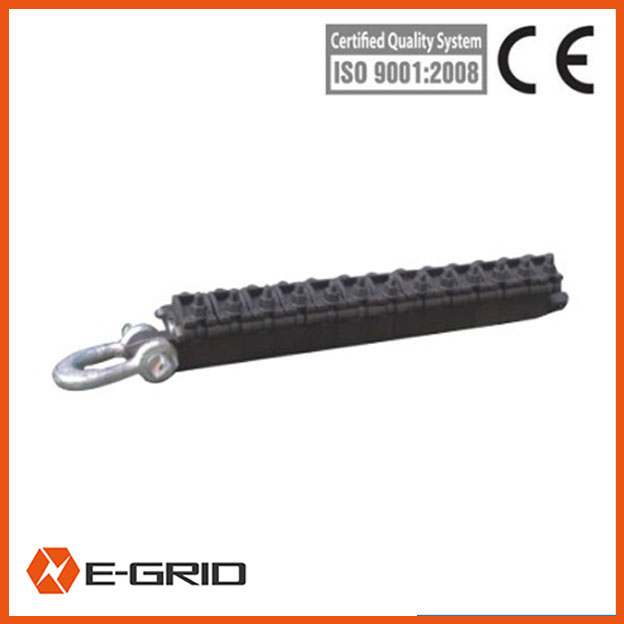

Model SKD300 earth wire grip (bolt type)
Conductor wire Self-gripping Clamps China
Conductor wire Self-gripping Clamps China

·Order number:13235
·Use: It is suitable for earth wires in line construction (steel stranded wire and aluminous steel stranded wire).
·Diameter of applicable earth wire: Φ30 mm (specify the diameter of conductor in the contract )
·Rated load :100kN
· Torque for tightened bolt: 135N.m
·Weight: 25 kg.

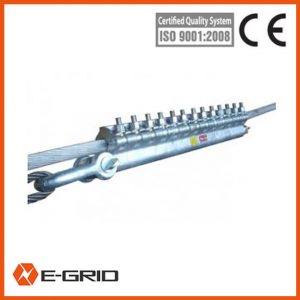

Model SKD45DPI Bolt Type Radial Locking Clamp
Model SKD45DPI Bolt Type Radial Locking Clamp
Model SKD45DPI Bolt Type Radial Locking Clamp

Item number:13231
Rated load:150kN
The diameter of applicable conductor range:37 45mm(should confirm the diameter of conductor before proceeding production)
Tighten moment of compression bolt:120N.m
Weight:50kg.

Application

can be used in large section conductor and long span high tensioning construction occasion , protect conductor effectively.

Feature

The body is made of high strength aluminum alloy, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable.
High quality nuts, will not become loose even if used for a long time.
Notes: The aluminum liner is replaceable.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
​Remarks
We can supply all kinds of stringing equipment according to customers’ requirements.
