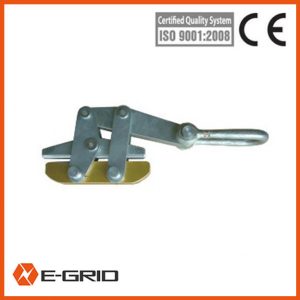

Anti-twisting Steel Rope Grip China

Self Gripping Clamps For Anti-twisting steel rope can be used to anchor and to string steel rope.

​About E-Grid

​Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.

Description
Self Gripping Clamps For Anti-twisting steel rope/Tensioners twisted rope

The self-gripping clamps can be used to anchor and to string steel rope. The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load. The galvanization treatment on the surface protects from oxidation. We can provide the jaws with special dimension according to customers’ requirement.

Anti-twisting steel rope grip China
Anti-twisting steel rope grip China

Order numberModelRated load (kn)Applicable steel ropeWeight (kg)
13155SKG50N50¡õ11¡«156.5
13156SKG70N70¡õ16¡«188.5
13157SKG120N120¡õ19¡«21 OR ¡õ22¡«2413.6
13158SKG200N200¡õ26¡«3032.5

Application

It is suitable for griping anti-twist steel rope .

Feature

V-shape clipper gap; two symmetry loading sides.
The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts, will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space.

Note

Specify the requirement of anti-twist wire rope in the contract.

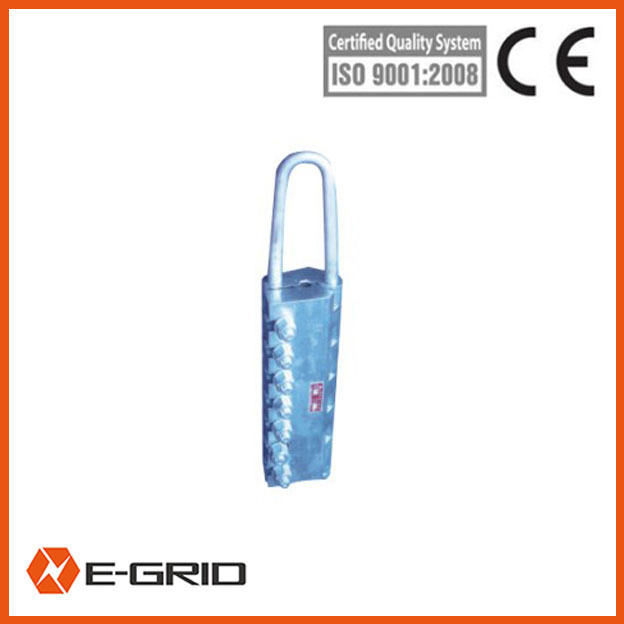

Model SKG grip for round steel rope (bolt type )

Anti-twisting steel rope grip China
Anti-twisting steel rope grip China

Order numberModelRated load (kn)Applicable steel ropeWeight (kg)
13161SKG-440¦µ6¡«15.56
13162SKG-770¦µ16¡«1810
13163SKG-10100¦µ19¡«2215

Application

It is suitable for round strand wire rope.

Feature

V-shape clipper gap; two symmetry loading sides.
The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts, will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space

Note

It should reach required torque in the instruction book when screwing the muter.

Model SKGF anti-twist wire rope grip (bolt type )

Anti-twisting steel rope grip China
Anti-twisting steel rope grip China

OrderModelRatedApplicableWeight
numberload (kN)steel wire rope(kg)
13171SKGF-2207-93
13172SKGF-330114.5
13173SKGF-55013-157.5
13174SKGF-66016-189
13175SKGF-8802012
13176SKGF-1010022-2415

Application

It is suitable for anti-twist wire rope .

Feature

V-shape clipper gap; two symmetry loading sides.
The body is made of high strength hot forged steel, in order to minimize the ratio between weight and working load.
The galvanization treatment on the surface protects from oxidation.
Thickened handle, no deformation, more secure and stable
High quality nuts, will not become loose even if used for a long time
Light weight, easy to carry, work well even in narrow space

Note

It should reach torque required in the instruction book when screwing the muter.
