Overhead OPGW Installation Hydraulic Puller and Tensioner

Overhead OPGW Installation Hydraulic Puller and Tensioner

SA-YQZ Hydraulic Puller and Tensioner for OPGW Installation is specially used for exchange old earth wire with new OPGW line.

​About E-Grid

​Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.

Description

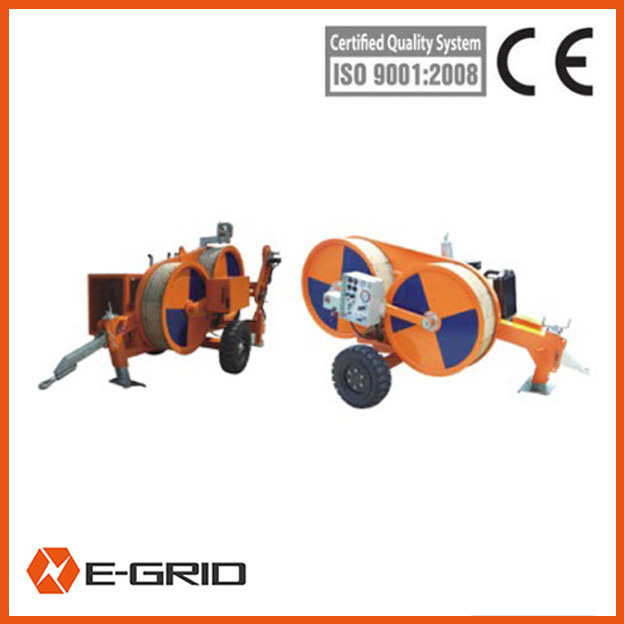

SA-YQZ Hydraulic Puller and Tensioner for OPGW Installation

OPGW Stringing equipments is specially used for exchange old earth wire with new OPGW line. Our puller tensioner with hydraulic tensioner is one set for exchange work. The hydraulic puller Product Directory tensioner has big wheel and strong engine for retrieve the hard earth wire well. It also can drive hydraulic reel stand for retriving the old earth wire on steel or wooden drum.

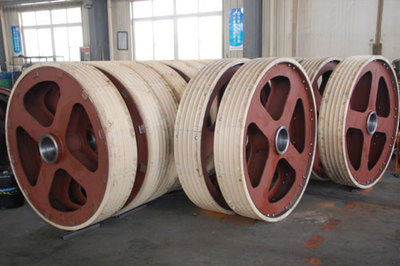

​The machine is suitable to string various conductor,earthwires,OPGW optic cable compounded earthwire and ADSS self-stand optic cable etc.The bull-wheel grooves are made up of high resistance interchangeable nylon sectors.

Performance
SA-YQZ40C SA-YQZ40D SA-YQZ60
Maxtension / Max pull40kN/40kNMax tension / Max pull40kN/40kNMax tension / Maxpull60kN/60kN
Continuous line pull / tensioner (kN)35kN/35kNContinuous line pull / tensioner (kN)35kN/35kNContinuous line pull / tensioner (kN)55kN/55kN
Max speed5km/hMax speed5km/hMax speed5km/h
Note:the basic machine performance is calculated at 20¡ãC and at sea level
Characteristics
SA-YQZ40C SA-YQZ40D SA-YQZ60
Bull-wheel diameter1200mmBull-wheel diameter1200mmBull-wheel diameter1500mm
Max conductor diameter32mmMax conductor diameter32mmMax conductor diameter40mm
Mass3600kgMass3200kgMass4800kg
Dimensions4170x1850x2400Dimensions3600x1850x2400Dimensions5500x1890x2400
Engine
SA-YQZ40C SA-YQZ40D SA-YQZ60
EngineDeutz F4L912(import)EngineCummins 4BT3.9(Dong Feng)EngineDeutz BF4L914(import)
Diesel51 Kw/2500 rpmDiesel60 Kw/2000 rpmDiesel82.5 Kw/2500 rpm
Cooling systemAirCooling systemAirCooling systemAir
Electrical system12VElectrical system12VElectrical system12V
Main component
Main pumpRexroth(BOSCH)
Main motorRexroth(BOSCH)
ReducerRR(Italian)
RadiatorAKG
Hydraulic instrumentWIKA
Hydraulic valveRexroth(BOSCH)
Hydraulic Transmission

Hydraulic open circuit that provides very sensitive tensioning control and negligible deviations of tension in case of speed change.

Configuration

Negative self-acting hydraulic brake
Hydraulic dynamometer with set-point and automatic control of maximum pull.
Hydraulic oil cooling system
Mechanical meter counter.
Rigid axle for towing at max speed of 30km/h with mechanical parking brake.
Hydraulic power pack to control 1 drum stand with hydraulic motor or 1 reel winder.
Gearbox with 3 operating positions:
–neutral position(with free bull-wheels for conductor loading and unloading)
–Low tensioner position.
–nominal tension position
Mechanical actuated front plough stabilizer.
Grounding device on board.

Working pictures:
Overhead OPGW Installation Hydraulic Puller and Tensioner
Overhead OPGW Installation Hydraulic Puller and Tensioner
Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
​Remarks
We can supply all kinds of stringing equipment according to customers’ requirements.

Shipment

1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
