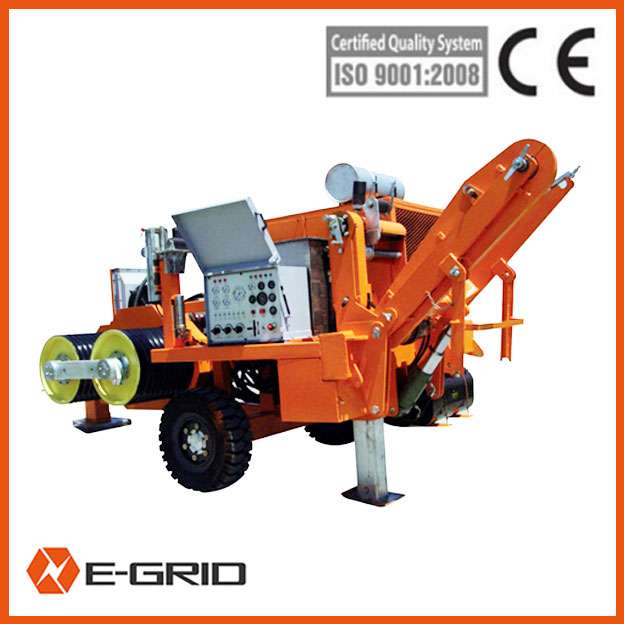

SA-YQ250 Hydraulic Pulleris suitable to string one rope. The bull-wheel grooves are made of heat treated steel. It can be matched with SA-YZ30A,SA-YQZ40,SA-YZ2X35,SA-YZ2X40,SA-YZ2X50,SA-YZ2X70,SA-YZ2X80,SA-YZ4X50 hydraulic tensioner.
Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.
Maximum linepull (kN):250
Continuous linepull (kN):200
Maximum linespeed (km/h):5
Bullwheel bottom of groove diameter(mm) :Φ820
Bullwheel grooves number : 10
Maximum suitable steelrope diameter (mm): Φ32
Maximum through connector diameter (mm): Φ80
Engine power /speed (kW/rpm):261/2100
Weight (kg): 9000
It is applied to traction in the process of paying off the wire, earth wire, OPGW cable and ADSS cable for Overhead Transmission Lines.
1. Negative self-acting hydraulic brake, in case of hydraulic failure ensure to safety.
2. Hydraulic dynamometer with set-point and automatic control of maximum pull, automatic overload protection.
3.Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.
4. Hydraulic oil cooling system.
5. With pull pre-setting system.
6.Hydraulic traction rope clamping device, automatic rope ,convenient to loading and unloading.
7. On board reel winder with automatic level wind, suitable for standard reel mod.
Remarks: we can supply all kinds of stringing equipment according to customers’ requirements.

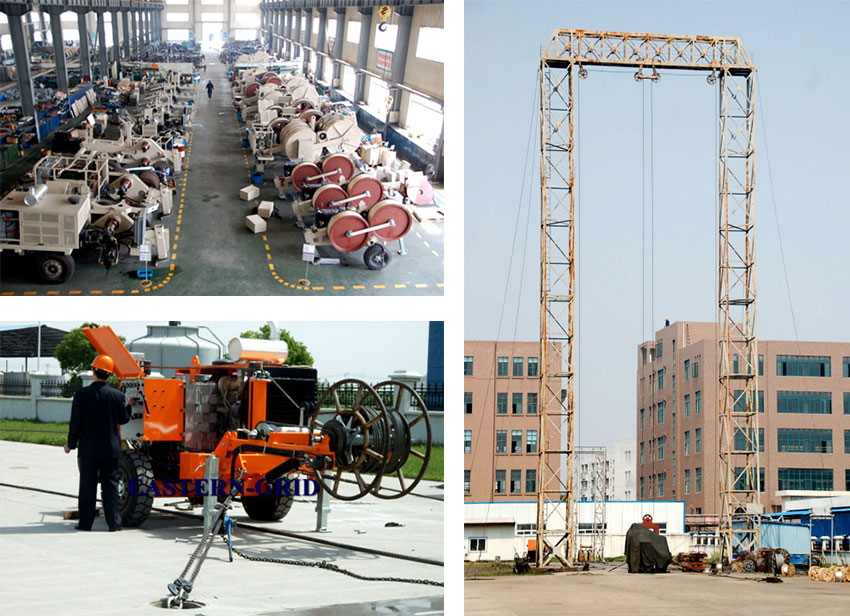

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Trailer type structure, rigid scaffold, attractive appearance.
We can supply all kinds of stringing equipment according to customers’ requirements.
|SN||Designation and specification||number||Remark|
|1||10 set double end solid wrench||1|
|2||32-36 double end solid wrench||1|
|3||50-55 double end solid wrench||1|
|4||19-24 ratchet wheel wrench||1||Order number: 05104|
|5||10 set inner hexagon spanner||1|
|6||160mm gripping tongs||1|
|7||10 inch monkey wrench||1|
|8||4 inch plus driver||1|
|9||4 inch minus screw driver||1|
|10||2 pound hammer||1|
|11||Filter wrench 70-130mm||1|
|12||B series engine operation and maintenance manual||1|
|13||SA-YQ40 hydraulic puller instruction for use||1|
|14||SA-YQ40 hydraulic puller certificate of conformity||1|
