Model QY hydraulic compressors for conductor/earth wire/copper-aluminum terminals

Order number	Model	Max Compress(kN)	Max oil pressure (MPa)	Applicable conductor	Stroke(mm)	Weight (kg)
16101	QY-25	250	60	¡ÜACSR240	22	6
16102	QY-35	350	70	¡ÜACSR240	25	12
16103	QY-65	650	94	¡ÜACSR 500	25	25
16104	QY-125	1250	94	¡ÜACSR 720	25	40
16105	QY-200	2000	94	¡ÜACSR 1440	25	85

Application

Used for compressing conductor, earth wire and copper-aluminum terminals. Mainly implemented in press forged steel.

Feature:

1. Excellent weight / power ratio
2. Very short pressing cycle (all the presses have an hydraulically-driven piston release)
3. Each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press.​

Note

1. Model 16101 and 16102 are matched with a manual pump or single tube electric pump;
2. Model 16103, 16104 and 16105 are matched with super high pressure hydraulic pump station.
3. Need to purchase matched die seperately.

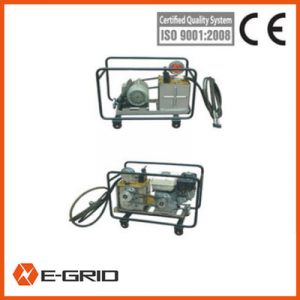

Super high pressure hydraulic pump station

Order number	Model	Rated oil pressure (MPa)	Flow (L/min)	Engine	Power (kW )	Weight (kg)
16143	YBG-94WC-A3	75	1.5	Diesel Z170F	2.94	101
16144	YBG-94WD	75	1.5	Motor Y90L-4	1.5	68
16146	YBG-94WQ	75	1.5	Honda gasoline GX160	4.1	68
16147	YBG-94WC	75	1.5	Diesel Z170F	2.94	110

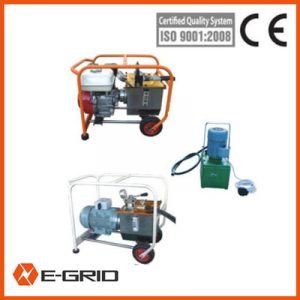

Super high pressure hydraulic pump station (double -speed)

Order number	Model	Rated oil pressure (MPa)	Flow (L/min)	Engine	Power (kW )	Weight (kg)
16148	YBG5	Low pressure 5.4	5.94	HONDA gasoline GX160	4.41	60
		High pressure 70	0.81
16153	YBG63D	Low pressure 6.3	2.8	Motor,JW7134	0.75	20
		High pressure 63	0.32
16154	YBG94LQA	Low pressure 6.3	6	PuYIsi gasoline 60-XTS	2.7	50
		High pressure 75	0.68

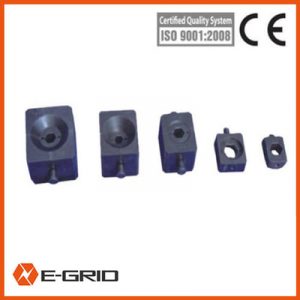

Hexagonal compressing die sets for conductor /earth wire

Order number	Modelof matched compressor	Specification of compression die set serials
16121	QY-25	Copper terminals:16-240 mm2
16122	QY-35	L-16.18.20.22.24.26.30.32.34.36
		Copper terminals:16-500 mm2
16123	QY-65	L-26,28.30.32.34.36.38.40.45.50
		G-12.14.16.18.20.22.24.26
		Copper terminals:16-800mm2
16124	QY-125	L-26.28.30.32.34.36.38.40.45.50.52.55.60
		G-12.14.16.18.20.22.24.26
		Copper terminals:16-800 mm2
16125	QY-200	L-26.28.30.32.34.36.38.40.45.50.52.55.6065.70.75.80
		G-12.14.16.18.20.22.24.26.28.30.32
		Copper terminals:16-800mm2

Note: The specification of compressing die sets refer to the section of copper conductors or diameter of aluminum or steel compressing tubes. Special compressing die sets could be made according to your needs.

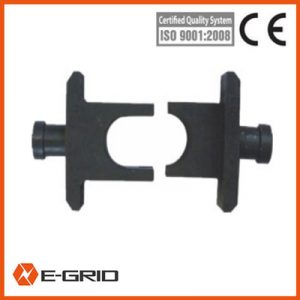

Conductor/earth wire arc compress die sets

Order number	Modelof matched compressor	Specification of compression die set serials
16131	QY-25	LJ16, 25, 35, 50, 70, 95, 120, 150, 185L
16132	QY-35	GJ10, 16, 25, 35, 50,70, 95, 120, 150, 185, 240.
16133	QY-65
16134	QY-125

Note: The specification of compression die sets refers to the model of applicable conductors.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
​Remarks
We can supply all kinds of stringing equipment according to customers’ requirements.

Shipment

1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.

Payment

​1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.

Why choose us

1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
