Cable entrance protective sleeve

Cable entrance protective sleeve

​About E-Grid

​Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.

Description
Order numberModelApplicable orifice diameter (mm)Weight (kg)
21311DKT90Z¦µ901.2
21312DKT100Z¦µ1001.5
21313DKT130Z¦µ1302.4
213114DKT150Z¦µ1503.2
21315DKT180Z¦µ1806.4
21315ADKT200Z¦µ2007

Application
protect cable pass in and out duct .bell mouth entrance
Feature
Is made of high quality steel, Surface spray anti – rust paint to avoid rusting
With seamless welding technology , technology skills, welded firmly.

Cable entrance ​protective sleeve
Curved cable entrance protective sleeve
Order numberModelApplicable orifice diameter (mm)Weight (kg)
21316DKT90W¦µ901.35
21317DKT100W¦µ1001.75
21318DKT130W¦µ1303
21319DKT150W¦µ1503.8

Uses : protect cable pass in and out tube. Applicable swerving occasion .30°bellmouth entrance.

Curved cable entrance protective sleeve

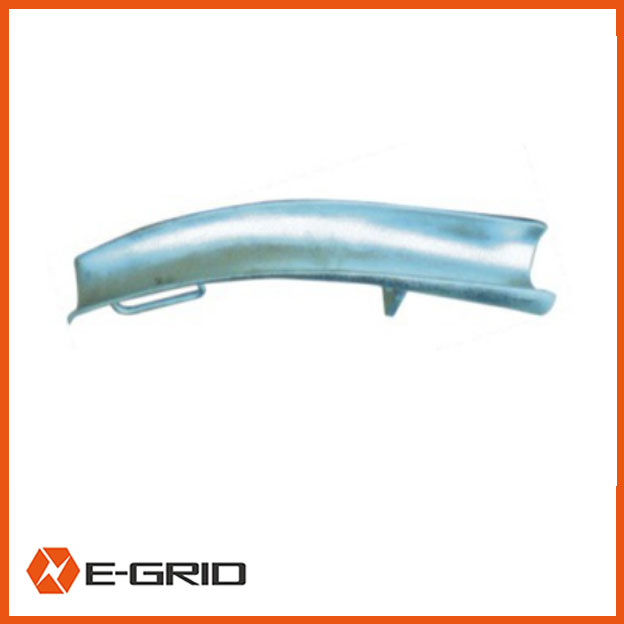

Cable protective bend
Order number213212132221322A2132521326
Structure formAAABB
Orifice diameter (mm)¦µ100¦µ130¦µ150¦µ100¦µ130
Curvature diameter (mm)R400R450R450R400R450
Weight (kg)3.25.25.93.46
Application

Protect the conductor and pulling rope at duct

Feature

Is made of high quality steel, Surface spray anti – rust paint to avoid rusting
With seamless welding technology , technology skills, welded firmly.
Cambered surface 45°wrap angle

Cable entrance protective sleeve
Cable protective bend

Model SHD150 cable string roller (aerial )
·order number :21338
﹒maximum cable diameter (mm): Φ80
﹒rated load (kn):5
﹒dimension (mm): Φ150×Φ70×100×R41
﹒hook opening (mm):24
﹒weight (kg):3.6
Application
To aerial electric power and communication cable construction .
Feature
The pulley wheels are made of MC nylon mounted on ball bearings
The frame is made of high quality steel, Surface spray anti – rust paint to avoid rusting
With seamless welding technology , technology skills, welded firmly.
The block has built-in bearing, which can rotate flexibly, effectively reduce friction and save labor
Nylon wheel ,and one side can open .

Model SHD150 cable string roller (aerial )

Model HCJ200 adjustable block stand
Order number :21331
Feature :matching with 21333,used to string electric cable and optical cable at manhole,fixed block on the shelf by bolt ,block location can adjust base on the height of cable manhole,block shelf is composed of two segment , contraction construction suitable for different height of manhole,adopt cam support and tighten .
Essential technical parameter:
1.supporting length (mm):1625~2300
2.weigh (kg):34

Model HCJ200 adjustable block stand

Model SH660Q multi-sheave block
·order number :21333
·feature :in combination with 21331,to string electric power cable and optical cable,
fixed on the block shelf by bolt while using ,11sets of nylon block ,aluminum alloy side board ,also used to protect the cable at manhole .
·Essential technical parameter :
1. curvature radius (mm):R660
2. groove radius (mm):R45
3. corner (°):90
4. weight (kg):15

Model HCJ24 multi-sheave block stand
·order number :21335
·feature: to string an aerial cable and electric power cable ,fixed the shelf on the pole ,as a equipment of horizontal and vertical installation for 21336.
weight (kg):6.2

Model SH430R multi-sheave cable block
Order number :21336
Feature : to string an aerial cable and electric power cable, induct cable from reel to hoisting point ,mounted block on the 21335 vertically and horizontally , two adjustable compress wheel to prevent the cable kicking on from the block groove .nylon block .
Essential technical parameter :
1 block number :4
2. curvature radius (mm):R430
3. groove radius (mm):R45
4. corner (°):45
5. installation axis diameter (mm): Φ24
6. weight (kg):6.1

Model SH430R multi-sheave cable block
Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
​Remarks
We can supply all kinds of stringing equipment according to customers’ requirements.

Shipment

1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.

Payment

​1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.

Why choose us

1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
