Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.

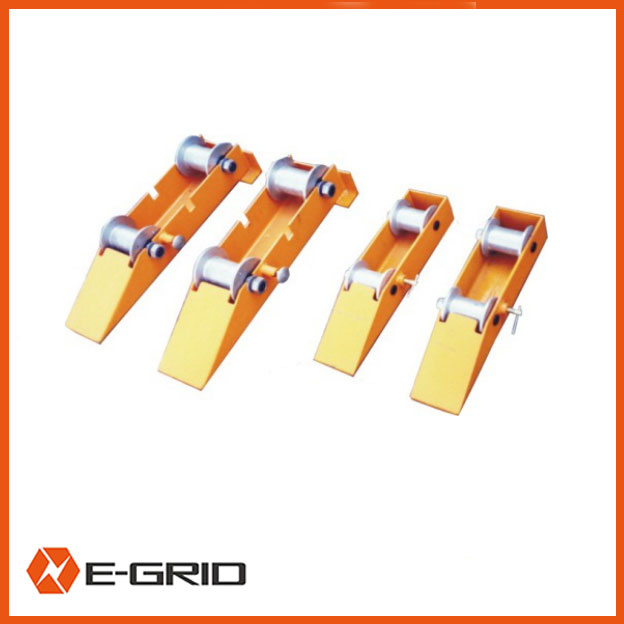

Summarize: serves as cable reel spread fixture. Apply to electric power ,communication and relatively industry to lay cable . The product consisting of turntable ,roller ,axis of roller and lock fixture ,mounted rolling bearing on roller,reel running flexible.
Essential technical parameter :
| Order number | 21533 | 21552 | 21551 |
|---|---|---|---|
| Model | HZT1250 | HZT1800 | HZT2500 |
| Appllicable drum diameter (mm) | ¦µ500¡«¦µ1250 | ¦µ500¡«¦µ1800 | ¦µ500¡«¦µ2500 |
| Maximum weight of drum (kg) | 500 | 1500 | 1500 |
| Dimension (mm) | 470¡Á172¡Á105 | 650¡Á150¡Á145 | 900¡Á230¡Á130 |
| Single piece weight (kg) | 17 | 40 | 73 |
Using method :
1. Mounted on two roller base on the drum diameter.
2. Lock the roller on the slope.
3. Adjust roller base on the drum diameter.
4. Slopes the drum rim up the turntable along its slants.
5. Relieve the locking roller ,then you can turn the drum .

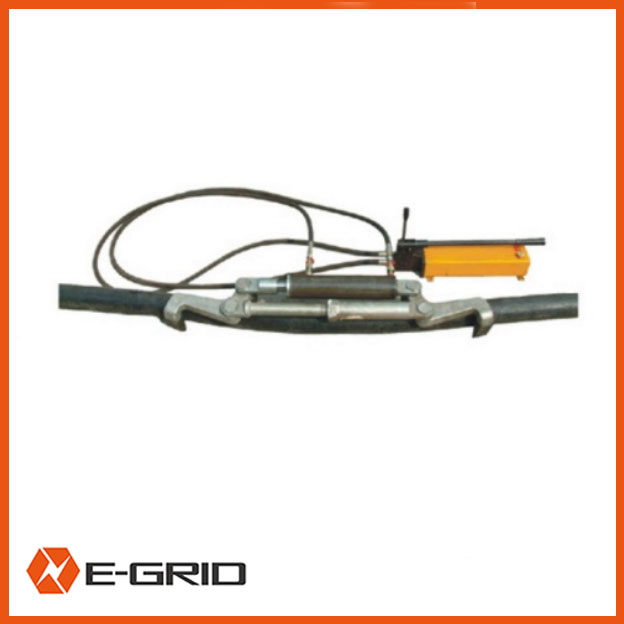

Model JZD 130 cable alignment engine
·order number :21565
·uses :to align and bend cable head while making ,hydraulic power ,operate convenient,double speed manual pump , fast and effectively
·essential technical parameter :
1. applicable cable diameter (mm): Φ30～Φ130
2. cable curvature diameter (mm):about 1000
3. maximum oil pressure (Mpa):45
4. oil capacity (L):3
5. weight :alignment engine (kg):39.3
manual pump (kg):18.2
6. carry sheet iron chest

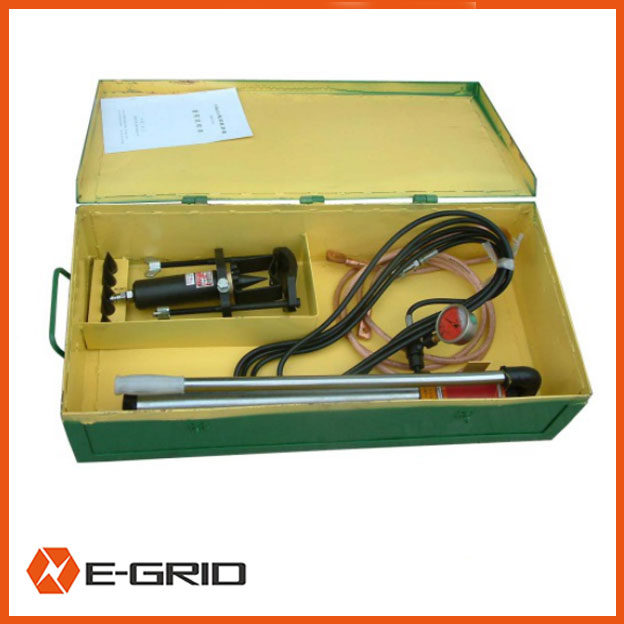

Model YDK110 piercing tool
·order number :21571
·essential technical parameter
Applicable cable diameter (mm):≤Φ108
Insulation oil tube length (m):5
Net weight (kg):13
Package case :iron sheet .
·uses :pierce cable before cutting off cable wire, verify cable wire no -electrification and ensure safety of operator

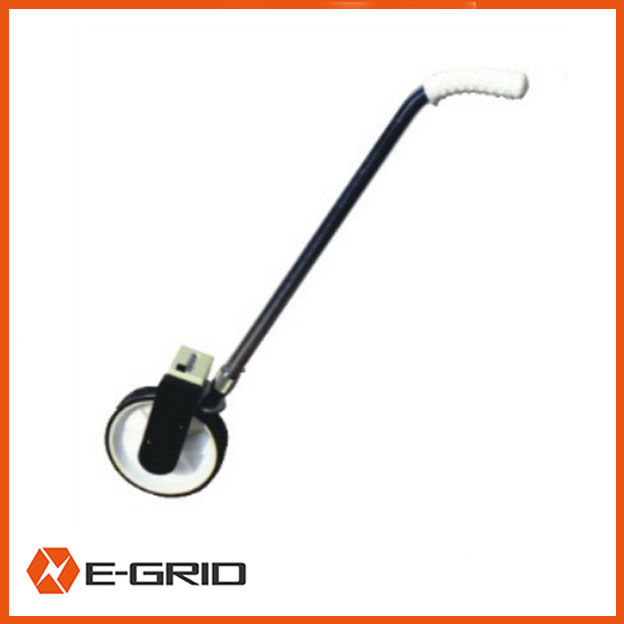

Model JC1000 route measuring meter
·order number :21581
·uses:apply to measuring distance in and out doors ,single wheel ,maximum measuring route is 9999.9m
·weight (kg):3

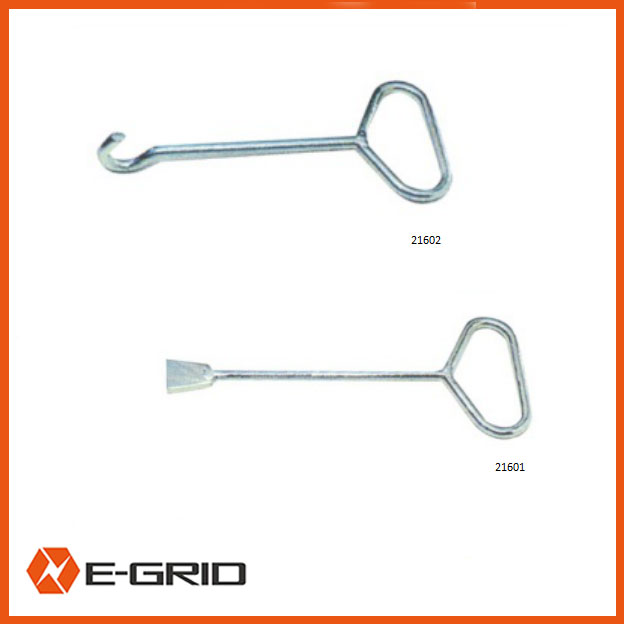

Model JG 350 well cover hook
| Order number | Model | Length (mm) | Feature |
|---|---|---|---|
| 21601 | JG350A | 350 | Flat head |
| 21602 | JG350B | 350 | Hook head |

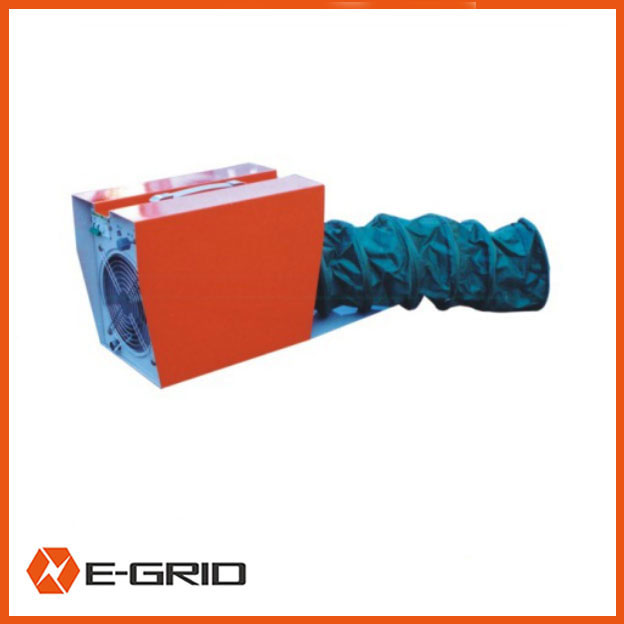

Bidirectional ventilator
·order number:21611
·essential technical parameter :
Maximum air output (m3/min):13
Motor power (w):65
Working voltage (v):AC220
Air hose length (m):2
·feature : Bidirectional blow .infinitely variant speed , adopt short cut and earth leakage circuit protection protect facilities.
·uses : to blow flesh air into well ,ensure the safety of operator .
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Remarks
We can supply all kinds of stringing equipment according to customers’ requirements.
1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.
1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
