Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.
Uses : suitable for tube optical cable installation in power communication industry .
·component :fiberglass duct rodder is composed of rodder and small wheel .
There are nylon guide tip and nylon shackle for fiberglass duct rodder with terminal
end threaded 12mm . the standard length of roller guide tip is 100m.
Feature :rodder adopt FRP molding core material . the external cover with
special engineering plastics. Smooth and high-strength .
Model CSP1 fiberglass duct rodder adopt Φ11mm roller guide tip, order number is :21421
Model CSP1 fiberglass duct rodder adopt Φ13mm roller guide tip, order number is :21422
Model CSP1 fiberglass duct rodder adopt Φ15mm roller guide tip, order number is :21423
Note :please note in contract if need other length .

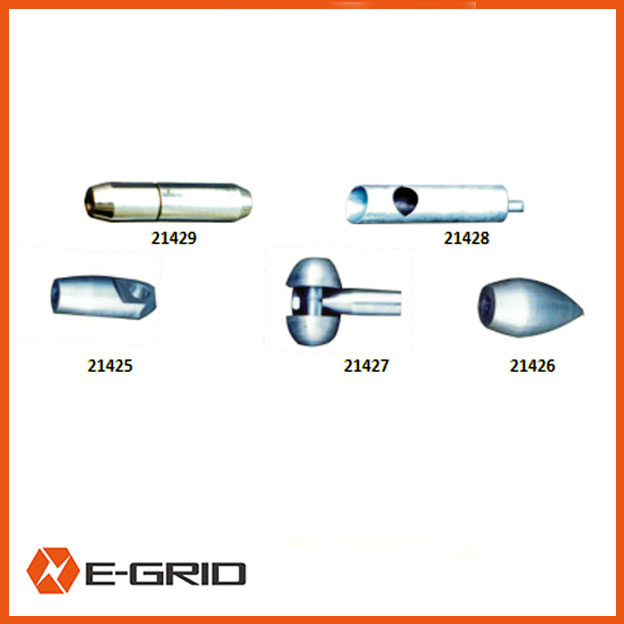

| Order number | Spec | Feature | Use |
|---|---|---|---|
| 21425 | ZT25Cone-shaped guide tip | Cone-shaped tip ¦µ25 | Guide rodder through duct ,the tip of model Z25 with hole ,apply to pullback connect pulling rope . |
| 21426 | ZT40Cone-shaped guide tip | Cone-shaped tip ¦µ40 | |
| 21427 | DXL60 guide roller | Circumcircle ¦µ60 | Guide rodder through swerve and level end of duct . |
| 21428 | NC mud basket | Close valve ¦µ60 | To clean mud and other small thing |
| 21429 | XZM12N swivel joint | Out diameter ¦µ 25 | Connect the rodder |

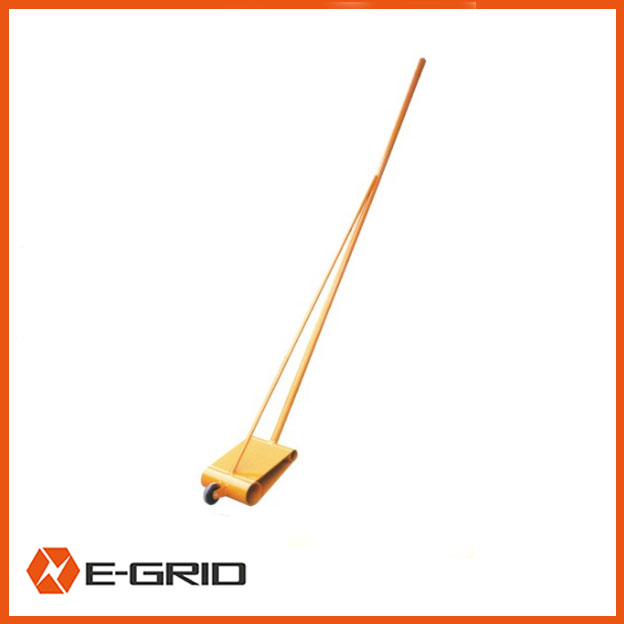

Model FNG 1100 lever –roller
·order number :21501
·Uses: to move the reels in large –scale reel depot ,according to lever principle .reduce the operators’ labor intensity ,pole length is 2.4m.a roller mounted to move the crow conveniently
·weight (kg):22
|

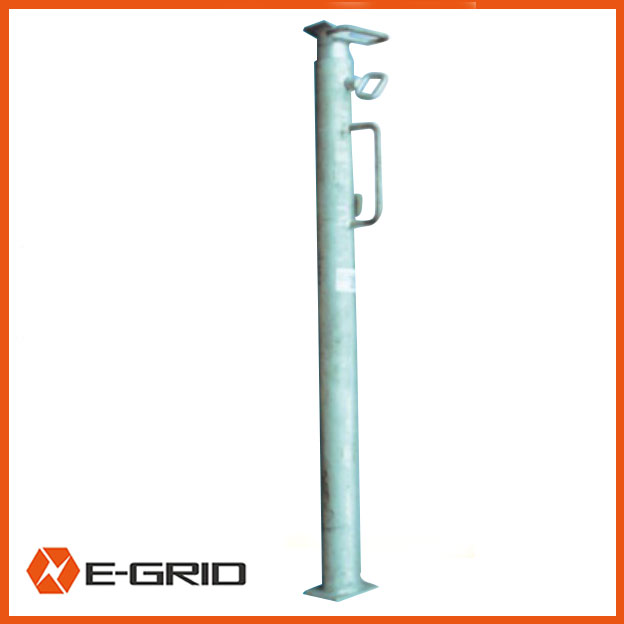

Model SZ1600 slewing tool
·order number :21511 ·uses :mating with the reel roller type crower,servesas reel turning pivot ,stand on reel hole margin of fixed bolts to move large –scale reel with one person .the length ranges from 1000 to 1600mm , adjustable space is 100mm ,suitable to various reels . ·weight (kg):12.4 |

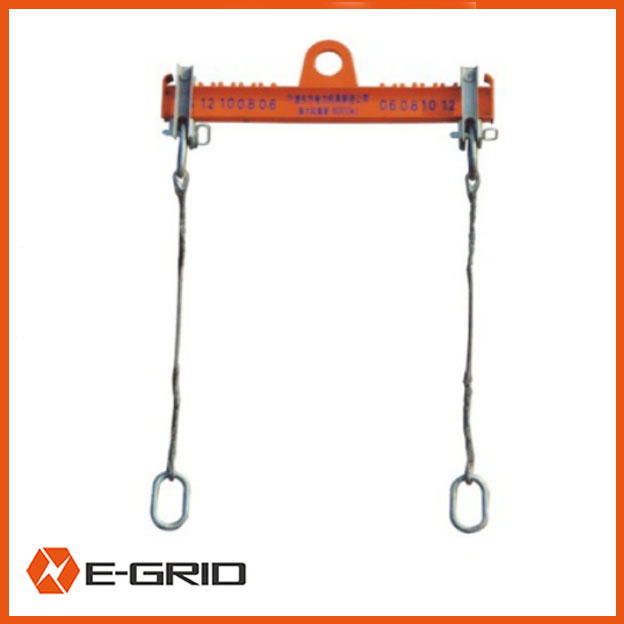

Model XQL 60 loading –spreader for reels
·order number :21521
·uses:can restrain damaging wires because of squeeze of drum in adopting A-shape lifting rope usually .maximum drum diameter is Φ2500 mm ,maximum width is 1400mm and maximum weight is 6tons ,mainly includes the crossbeam (width scale on it ),the lifting lug on the middle of beam and the mobile hoisting ring locating slots are on top of the beam .hoisting wire cable is 1.5m long and 105 kg .

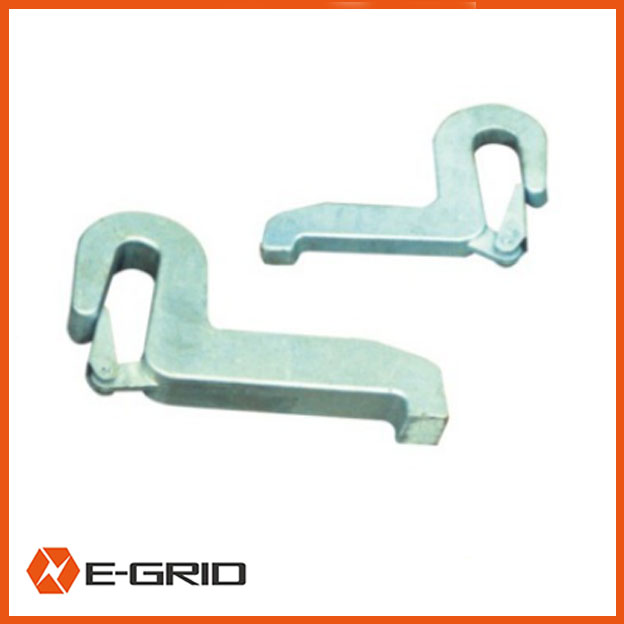

Quick–grip hook
| Order number | 21531 | 215312 |
|---|---|---|
| Model | PGK60 | PGK100 |
| Maximum drum weight(kg)) | 6000 | 10000 |
| Dog weight (kg/piece) | 11.2 | 34 |

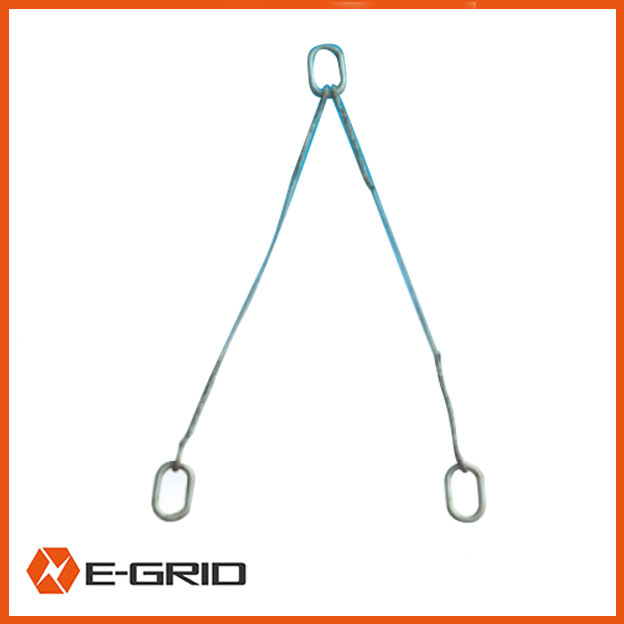

Two –leg bridle sling
| Order number | 21541 | 21542 |
|---|---|---|
| Model | SJ2¡Á60 | SJ2¡Á100 |
| Maximum drum weight(kg)) | 6000 | 10000 |
| Steel rope length (m) | 2 | 2.5 |
| Weight (kg) | 18 | 28 |
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Remarks
We can supply all kinds of stringing equipment according to customers’ requirements.
1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.
1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
