Ningbo Eastern Grid Power (E-Grid) is China leader in designing, manufacturing and supplying hydraulic brake tensioners for stringing operations, ideal to allow operations to be carried out with the highest accuracy, speed and safety.
| Order number | Model | Diameter of suitable cable (mm) | Rated load (kW) |
|---|---|---|---|
| 21361 | SLW16 | Φ12～16 | 8 |
| 21362 | SLW20 | Φ16～20 | 10 |
| 21363 | SLW25 | Φ20～25 | 12 |
| 21364 | SLW37 | Φ25～37 | 18 |
| 21365 | SLW50 | Φ25～37 | 28 |
| 21366 | SLW60 | Φ50～60 | 15 |
| 21367 | SLW80 | Φ60～80 | 20 |
| 21368 | SLW100 | Φ80～100 | 25 |
| 21369 | SLW120 | Φ100～120 | 30 |
| 213670 | SLW150 | Φ120～150 | 30 |
Application
To string electric power, communication, optical fiber cable.
Feature
They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.
Pay attention to the head of wire when using, try to reduce operating stress

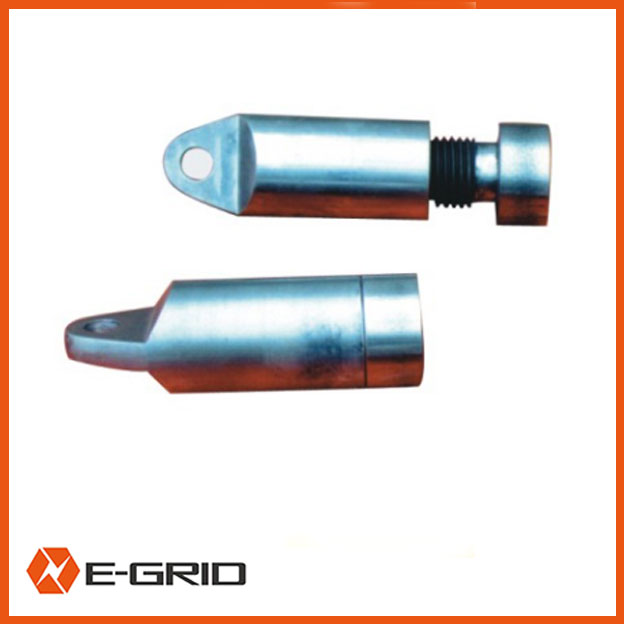

Model DDT series single core cable pulling eye
Feature: fix the connector through wrenching a screw
cone into the coble core ,use pulling eye to pull cable,the larger camp force accord with larger pull,use cable pulling eye repeatedly for many times ..
Essential technical parameter :
| Order number | Model | Section of cable (m©O) | Cut off length of insulating (mm) | Screw tighten moment (nm) | Limit pull (kN) |
|---|---|---|---|---|---|
| 21371 | DDT95 | 95 | 70 | 75 | 6.65 |
| 21372 | DDT120 | 120 | 70 | 80 | 8.5 |
| 21373 | DDT150 | 150 | 75 | 85 | 10.5 |
| 21374 | DDT185 | 185 | 75 | 90 | 13 |
| 21375 | DDT240 | 240 | 80 | 95 | 17 |
| 21376 | DDT300 | 300 | 90 | 100 | 21 |
| 21377 | DDT400 | 400 | 90 | 110 | 28 |
| 21378 | DDT500 | 500 | 90 | 120 | 35 |
Model CN duct mandrel
| Order number | Model | Diameter of tube (mm) | Weight (kg) |
|---|---|---|---|
| 21434 | GN80 | ¦µ80 | 6.5 |
| 21435 | GN90 | ¦µ90 | 6 |
| 21431 | GN100 | ¦µ100 | 6.6 |
| 21432 | GN130 | ¦µ130 | 10 |
| 21433 | GN150 | ¦µ150 | 15 |
| 21436 | GN180 | ¦µ180 | 18 |
Application
To remove the fouls in cable bus-bar.
Feature
Is made of high quality steel，surface is plated with zinc.
With seamless welding technology , technology skills, welded firmly.

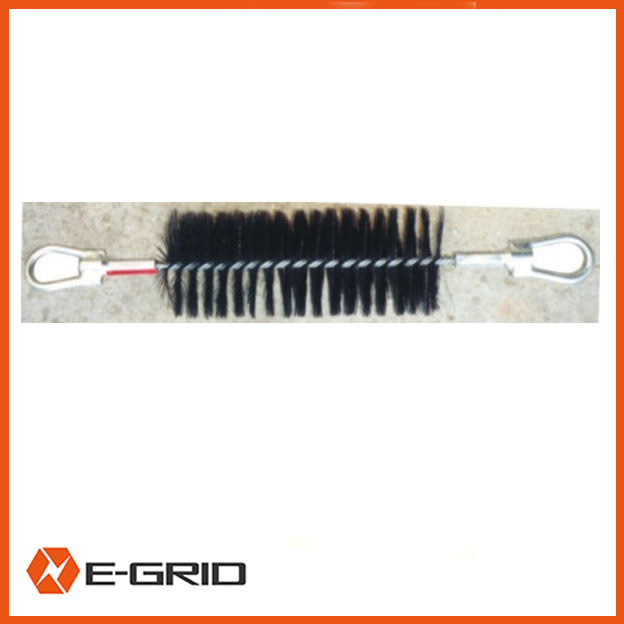

Model KS duct cleaning brush
| Order number | Model | Applicable aperture (mm) |
|---|---|---|
| 21409 | KS80 | 80 |
| 21410 | KS90 | 90 |
| 21411 | KS100 | 100 |
| 21412 | KS130 | 130 |
| 214113 | KS150 | 150 |
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Remarks
We can supply all kinds of stringing equipment according to customers’ requirements.
1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.
1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
